98 Rav4 radiator installation
Hi ya’ll! Dne’ here! Today I started working on the radiator removal on my youngest daughters 98 Rav4 AWD, with 289,000 miles. However, it’s not the original radiator. It was replaced at 144,000.
This removal/installation is a modified version in that I’m going to modify the radiator support for an easier installation of the radiator (not removal in my case). This will require cutting the radiator support for what I’m wanting to carry out. But for those who may “think out of the box” like me, read on! ; )
(Please check out at the end of this blog for a viewers project pics of doing this simple mod!! 😉 )
However, I did begin by removing the radiator the “normal” way. I fought it all the way just to get the radiator out!
A picture before diving in!
Owning a MaxJax lift really makes my life easier! During this removal, I had the Rav up and down several times!
OK, here we go~ start taking stuff off! I don’t think I need to go into detail about the little things. If you’re able to tackle something like this, common sense will be your “spider sense”. ; )
Air box removed, dryer unbolted from the frame to allow movement of the condensor, the tranny dipstick tube retainer bolt was loosened so the dipstick tube could be moved so the driver’s side fan could be removed, but not easily.
Notice the AC line is unbolted to allow greatest movement without draining the system. Don’t stretch them too much!
I have a pry bar (round end) inserted into the transmission dipstick tube so I can move it, plus keeps the hole plugged so nothing will fall down it! That would be horrible!
below: The passenger side fan just will not let the radiator come out! The lower radiator hose “thing”(you know, where the lower radiator hose attaches) is just too long. Even with the electric fan totally unbolted it was difficult, but did come out with a little force. God I hope I didn’t damage the condenser!
Note (Important): the bottom of the condensor needs to be lifted slightly off of its perch and moved slight forward to allow the radiator to be pulled upwards and eventually out.
This is the left side (drivers) grommet which the prongs of the radiator go into to hold the bottom in place. These stick to the radiator making the initial pull up to get it lose stubborn.
A view of the HOLE where the radiator was. It’s tight.
*****************************************************************************************************************************
I purchased my radiator off of Ebay from Radiator Classic for 86.00, free shipping with a lifetime warranty. Can’t beat that!
Maybe it was fate! But my new radiator was out of square! I sent it back and should receive the replacement in a couple of days. Radiator Classic jumped right on it to get another radiator to me when I called them, they were great to deal with! This little break of waiting for the next radiator allowed me to think about the idea of cutting the radiator support which also holds the hood latch. I lost more sleep thinking about this!
Here’s where it starts! I bolted the fans back on to the old radiator just to see how thick it would be, will it work? What if I screw up! 🙁
I used a sawzall with a metal-cutting blade to make the cuts. The cuts were thought out to be the best place for the cut. This metal cuts very easily. One cut down, then a little lower, a horizontal cut to release the support.
There’s a crazy amount of room with this support out-of-the-way! Awesome!
Here’s all the parts that were removed including the radiator support part that I cut out.
NOTE(again) With the fans bolted to the radiator, the entire system can be placed in its perch. This is a no brainer to me! If someone later needs to service the radiator, or electric fans, or anything on the front of the engine, they will be easily serviced by unbolting the radiator support!
Just setting the rad support in its place.
NOTE: If you do this, be sure to trim off the sharp parts~!!~ They are razor-sharp!

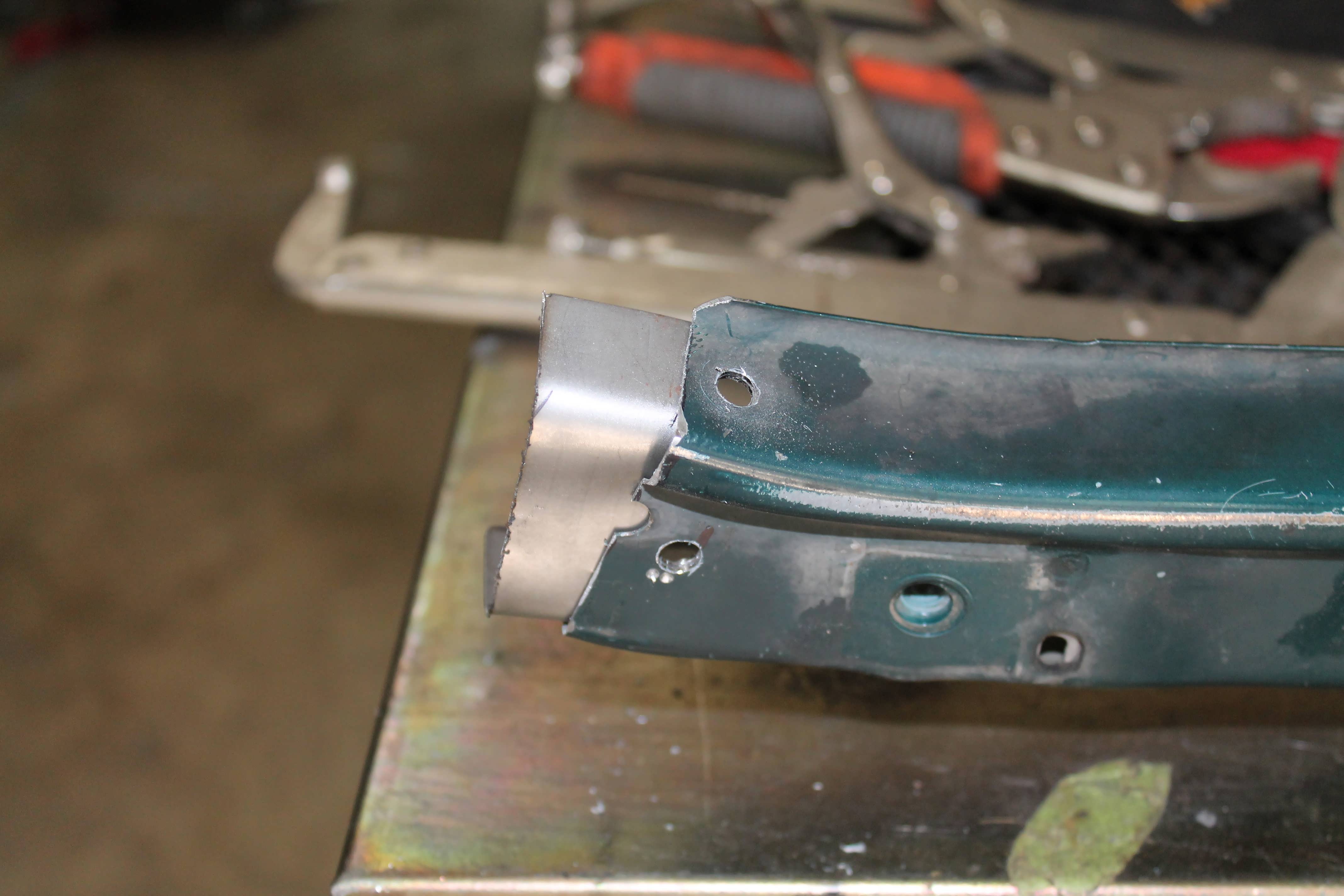

There’s a little flange that needs to be flattened out.
A pair of pliers does the trick. This needs to be flattened so the splice will fit.
Look at all that precious room would you!! 😉
Making a splice to put the radiator support back in. This took a little time and patience, but patience? I have plenty of patience! : ) NOTE: I think if I had to do this splicing over again, I would have used my mig welder and welded one side reducing the number of bolts used.
Here the rad support is temporarily bolted back in. Of course I had to make a trip to ACE hardware to get the bolts I needed. What would I do without ACE!! 😉
NOTE: Beneath the radiator support lie the hood release cable and an electric loom. Don’t cut those!!!!!
This morning, FedEx delivered my replacement radiator! I was able to get right on it and finish this job! I need to get back on my 59 Apache! However, here I have both electric fans bolted to the new radiator. I cleaned them well so they look new! After all, this little Rav deserves special attention~! It has been a Valiant Steed!
Here is the finished product! The radiator works great! I’m very pleased with the outcome! I know that if this new radiator were to fail, I could have it back out within 30 minutes!
I hope you have found some useful information here. Even if you do not choose this way, maybe some of the pictures will be useful. Please subscribe to Classic Cars and Tools~ I always have something going on! ; ) dne’
******************************************************************************************************************
Since the posting of the Rav4 radiator installation “mod”, I’ve had several good people out there do what I did in this blog and respond with good results!;) This blog gets many hits daily, and no telling how many people have performed this simple procedure! 😉 I’m happy to have helped!!
The next 4 pictures are from Arne, he has a ’96 Rav4. He performed the radiator support modification to allow easy access to replace the radiator! I’m pleased that he sent the pictures and happily excited that he shared these pictures!
As I mentioned earlier on, Look at all that precious room!! 😉 Way to go Arne!
